AcuSeek NEW HOT
add compare icon

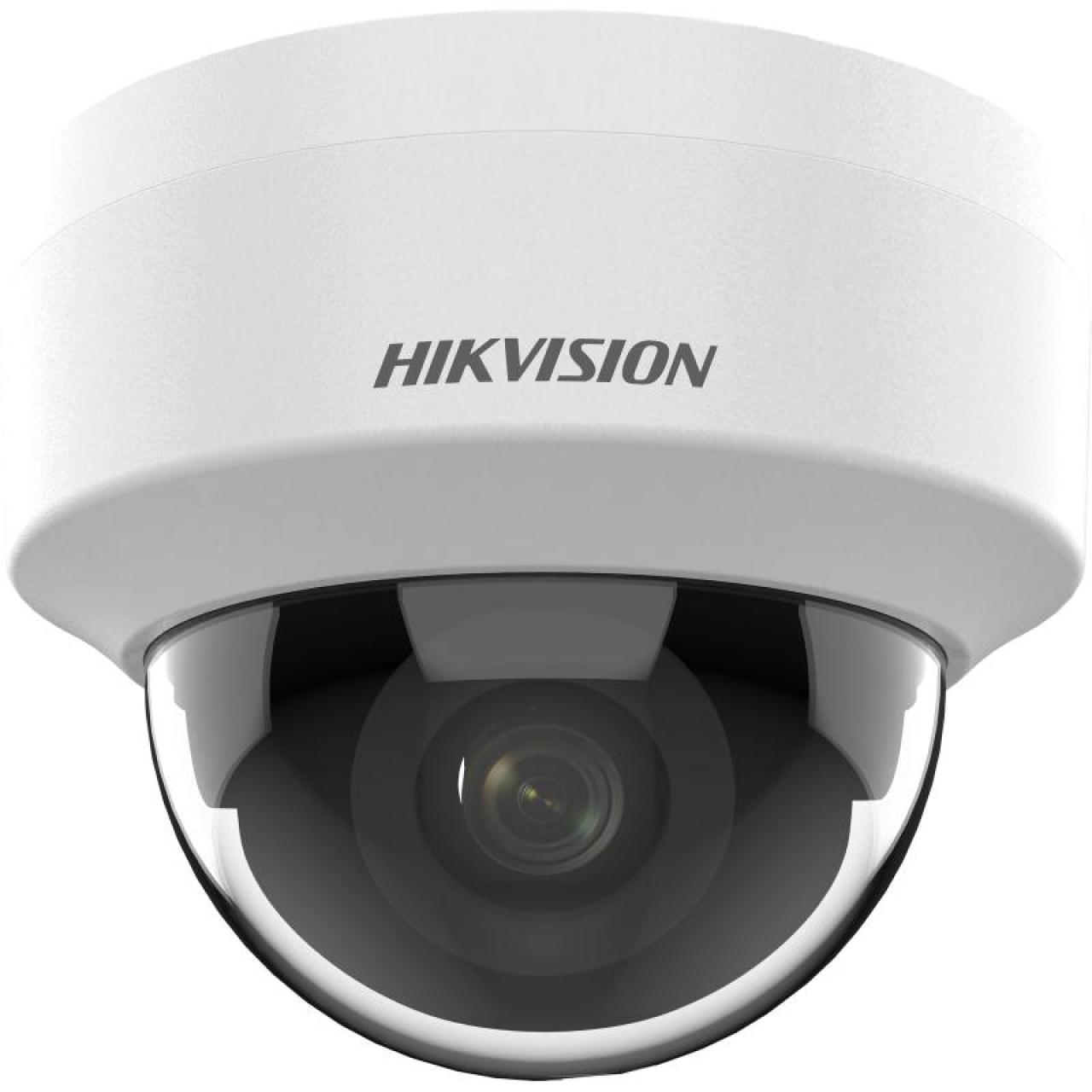

4 MP Fixed Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Easy installation with Power over Ethernet (PoE) technology

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD1141G0-I(2.8mm)
DS-2CD1141G0-I(4mm)
View more View Less
DS-2CD1141G0-I
Data Sheet

Specification

  • 카메라
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF2.2
  • Depth of Field2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞
  • Pixel Density
  • DORI2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 20 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region of Interest (ROI)1 fixed region for main stream
  • Network
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Profile S, Profile T), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • ClientiVMS-4200
  • Web Browser Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
  • Image
  • Wide Dynamic Range (WDR)Digital WDR
  • SNR≥ 52 dB
  • Privacy Mask1 programmable polygon privacy mask
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR
  • Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, exception
  • LinkageNotify surveillance center, send email, trigger capture
  • General
  • Power 12 VDC ± 25%, 0.4 A, max. 4.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 0, max. 6.5 W
  • MaterialPlastic
  • DimensionØ110.8 mm × 85.2 mm (Ø4.36" × 3.35")
  • Package Dimension163 mm × 75 mm × 75 mm (6.42" × 2.95" × 2.95")
  • Approx. 240 g (0.53 lb.)
  • With Package WeightApprox. 400 g (0.88 lb.)
  • Storage Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
  • Approval
  • EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015
  • Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

카메라
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°,tilt: 0° to 75°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.2
Depth of Field
2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞
Pixel Density
DORI
2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 20 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream
Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile T), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Client
iVMS-4200
Web Browser
Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Privacy Mask
1 programmable polygon privacy mask
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Image Settings
Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection, exception
Linkage
Notify surveillance center, send email, trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 4.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 0, max. 6.5 W
Material
Plastic
Dimension
Ø110.8 mm × 85.2 mm (Ø4.36" × 3.35")
Package Dimension
163 mm × 75 mm × 75 mm (6.42" × 2.95" × 2.95")
Approx. 240 g (0.53 lb.)
With Package Weight
Approx. 400 g (0.88 lb.)
Storage Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
