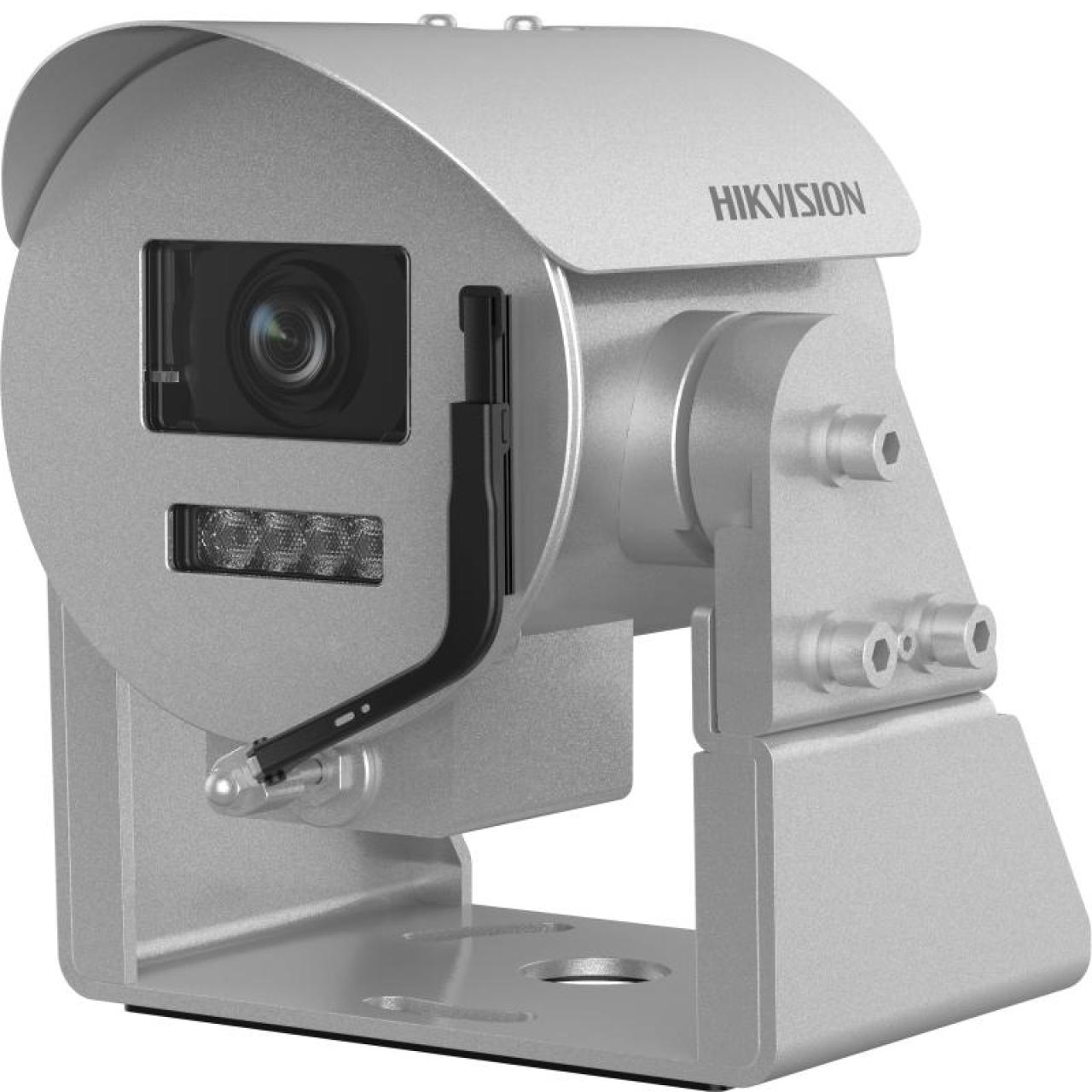

2 MP Gantry Crane Varifocal Anti-Corrosion Network Camera

  • High quality imaging with 2 MP resolution
  • Supports low latency, camera decoding with a delay as low as 100 ms
  • Expansive night view with up to 50 m white light distance and 100 m IR distance
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Easy installation with Power over Ethernet (PoE) technology and 9 to 36 VDC power input
  • Supports Hikvision Embedded Open Platform (HEOP) with 8 TOPS computing power and importing third party applications
  • A built-in wiper(-R) removes water and dust on the screen and ensures clear images when the camera is used in dusty or damp environments
  • 316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
  • Water and dust resistant (IP68)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2XV6A26G0-LIZHRSY(316L)(4.8-120)O-STD
DS-2XV6A26G0-LIZHSY(316L)(4.8-120)O-STD
View more View Less
DS-2XV6A26G0-LIZH(R)SY(316L)
Data Sheet

Specification

  • Kamera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @ (F1.7, AGC ON),0 Lux with light,B/W: 0.001 Lux @ (F1.7, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: -15° to 15°,tilt: -120° to 45°
  • Lens
  • FocusAuto,Semi-auto,Manual
  • Focal Length & FOV4.8 to 120 mm, horizontal FOV 54.9° to 2.7°, vertical FOV 31.5° to 1.5°, diagonal FOV 62.2° to 3.1°
  • Iris TypeAuto-iris
  • Aperture4.8 to 120 mm: Max. F1.7
  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light Range4.8 to 120 mm: IR: up to 100 m, White Light: up to 50 m
  • HEOP
  • Open ResourcesSystem memory: 150 MB Smart RAM: 1800 MB Flash: 3200 MB
  • Computing Power8 TOPS
  • Deep Learning StructureCaffe,PyTorch,TensorFlow
  • Programming LanguageC,C++
  • Video
  • Main Stream50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
  • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)5 fixed regions for main stream
  • Target CroppingYes
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio TypeMono sound
  • Network
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF, ISAPI, SDK, ISUP
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
  • Wide Dynamic Range (WDR)120 dB
  • Image StabilizationEIS
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
  • Image EnhancementBLC,HLC,3D DNR,Defog
  • Image Parameters SwitchYes
  • SNR≥ 52 dB
  • Privacy Mask8 programmable polygon privacy masks
  • Interface
  • Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
  • Ethernet Interface1 1000 M self-adaptive Ethernet port, 8-core M12 aviation plug
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Audio1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 1 KΩ, interface type: non-equilibrium 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventScene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
  • Deep Learning Function
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Dynamic Area Protection1. Supports person detection while the camera is in motion 2. Max. detectable targets: 64 3. For 2 MP/4 MP/8 MP resolutions, when target size ranges between 32 × 32/32 × 32/32 × 32 and 64 × 64/128 × 128/256 × 256, select High Mode 4. For 2 MP/4 MP/8 MP resolutions, when target size ≥64 × 64/128 × 128/256 × 256, select Low Mode
  • General
  • Power12 to 36 VDC, 2.16 A to 0.72 A, max. 25.9 W, M12 circular connector, reverse polarity protection； PoE: IEEE802.3at class 4, 42.5V-57V, 0.41 A to 0.31 A, Max：24W ; When using a 2 m or 10 m power extension cable, the supply voltage must be 12 to 36 V. For a 20 m power extension cable, the supply voltage must be 15 to 36 V.
  • Material316L and anti-corrosion coating
  • Dimension199.7 mm × 201.9 mm × 209.2 mm (7.9" × 8" × 8.2")
  • Package Dimension340 mm × 298 mm × 290 mm (13.4" × 11.7" × 11.4")
  • Approx. 3000 g (6.61 lb.)
  • With Package WeightApprox. 4000 g (8.82 lb.)
  • Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Wiper-R: Yes
  • General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
  • Approval
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • SafetyCB: IEC 62368-1: 2014
  • ProtectionIP68: IEC 60529:1989+AMD1:1999+AMD2:2013
  • Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
  • Transport CertificationIATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Dangerous Goods Code, Railway Dangerous Goods List
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Kamera
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.005 Lux @ (F1.7, AGC ON),0 Lux with light,B/W: 0.001 Lux @ (F1.7, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: -15° to 15°,tilt: -120° to 45°
Lens
Focus
Auto,Semi-auto,Manual
Focal Length & FOV
4.8 to 120 mm, horizontal FOV 54.9° to 2.7°, vertical FOV 31.5° to 1.5°, diagonal FOV 62.2° to 3.1°
Iris Type
Auto-iris
Aperture
4.8 to 120 mm: Max. F1.7
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
4.8 to 120 mm: IR: up to 100 m, White Light: up to 50 m
HEOP
Open Resources
System memory: 150 MB Smart RAM: 1800 MB Flash: 3200 MB
Computing Power
8 TOPS
Deep Learning Structure
Caffe,PyTorch,TensorFlow
Programming Language
C,C++
Video
Main Stream
50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression
Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
5 fixed regions for main stream
Target Cropping
Yes
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Type
Mono sound
Network
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Simultaneous Live View
Up to 20 channels
API
ONVIF, ISAPI, SDK, ISUP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
Wide Dynamic Range (WDR)
120 dB
Image Stabilization
EIS
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Day/Night Switch
Day,Night,Auto,Schedule,Alarm Trigger
Image Enhancement
BLC,HLC,3D DNR,Defog
Image Parameters Switch
Yes
SNR
≥ 52 dB
Privacy Mask
8 programmable polygon privacy masks
Interface
Video Output
1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface
1 1000 M self-adaptive Ethernet port, 8-core M12 aviation plug
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 1 KΩ, interface type: non-equilibrium 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input, 1 output (max. 12 VDC, 30 mA)
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Dynamic Area Protection
1. Supports person detection while the camera is in motion 2. Max. detectable targets: 64 3. For 2 MP/4 MP/8 MP resolutions, when target size ranges between 32 × 32/32 × 32/32 × 32 and 64 × 64/128 × 128/256 × 256, select High Mode 4. For 2 MP/4 MP/8 MP resolutions, when target size ≥64 × 64/128 × 128/256 × 256, select Low Mode
General
Power
12 to 36 VDC, 2.16 A to 0.72 A, max. 25.9 W, M12 circular connector, reverse polarity protection； PoE: IEEE802.3at class 4, 42.5V-57V, 0.41 A to 0.31 A, Max：24W ; When using a 2 m or 10 m power extension cable, the supply voltage must be 12 to 36 V. For a 20 m power extension cable, the supply voltage must be 15 to 36 V.
Material
316L and anti-corrosion coating
Dimension
199.7 mm × 201.9 mm × 209.2 mm (7.9" × 8" × 8.2")
Package Dimension
340 mm × 298 mm × 290 mm (13.4" × 11.7" × 11.4")
Approx. 3000 g (6.61 lb.)
With Package Weight
Approx. 4000 g (8.82 lb.)
Storage Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Wiper
-R: Yes
General Function
Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety
CB: IEC 62368-1: 2014
Protection
IP68: IEC 60529:1989+AMD1:1999+AMD2:2013
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
Transport Certification
IATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Dangerous Goods Code, Railway Dangerous Goods List
