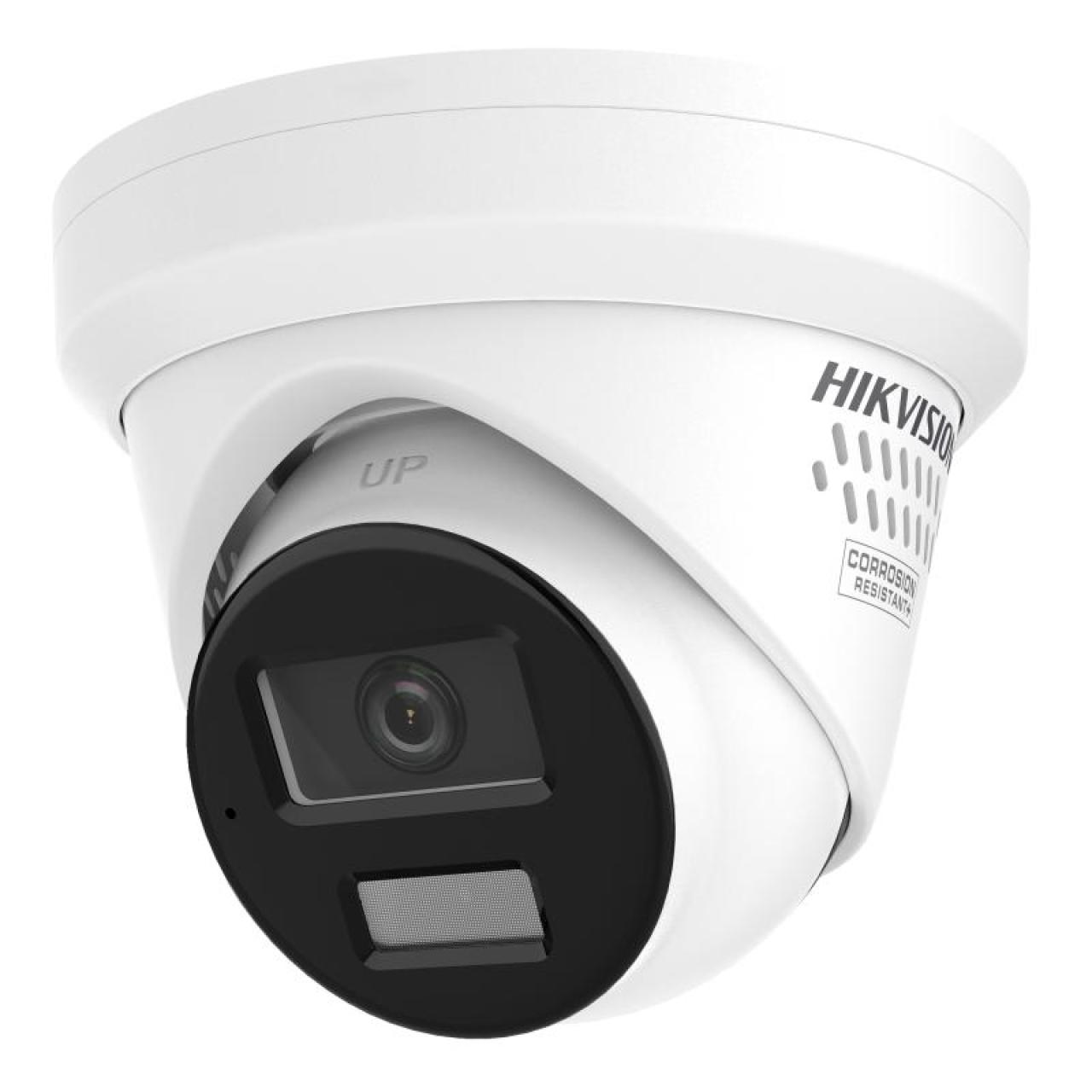

6 MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera

Name: 6 MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

HikAI-ISP for excellent noise reduction effect
High quality imaging with 6 MP resolution
Acusense: Focus on human and vehicle classification based on deep learning
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Built-in arrayed dual-microphone for real-time high quality audio security
130 dB WDR, support Auto mode, clear imaging against strong back light
Water and dust resistant (IP67)
Active strobe light and audio alarm to warn intruders off
-Y: Anti-corrosion design, providing reliability and longevity compared to standard (NEMA 4X)

View Less

Data Sheet

Available models:

DS-2CD3363G3-LIUY/SX(6mm)

DS-2CD3363G3-LIUY/SX(4mm)

DS-2CD3363G3-LIUY/SX(2.8mm)

View more View Less

DS-2CD3363G3-LIU(Y)/SX AcuSeek

^NEW

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
Depth of Field 2.8 mm: 1.8 m to ∞ 4 mm: 3.1 m to ∞ 6 mm: 6.4 m to ∞

Pixel Density
DORI 2.8 mm, O: 95.1 m, O: 47.5 m, D: 23.8 m, P: 15.2m , C: 7.6m, V: 3.8m, S: 1.3m 4 mm, O: 144.1 m, O: 72.1 m, D: 36.0 m, P: 23.1m , C: 11.5m, V: 5.8m, S: 1.9m 6 mm, O: 205.7 m, O: 102.9 m, D: 51.4 m, P: 32.9m , C: 16.5m, V: 8.2m, S: 2.7m

Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video
Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Bit Rate Control CBR,VBR
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Target Cropping Yes

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect,Hik-Central
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web Browser Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Image Parameters Switch Yes
Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Image Enhancement BLC,HLC,3D DNR
Privacy Mask 8 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key Yes
Built-in Speaker 1 built-in speaker,Power: 2 W, max.sound pressure level: 10 cm: 110 dB.
Audio Built-in Microphone: Arrayed dual-microphone

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle and animal)),video tampering alarm,exception
Smart Event Unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection,video quality diagnosis
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,strobe light flashing,audible warning

Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle and animal),people gathering, fast moving, parking, unattended baggage, object removal, combined event

General
Power 12 VDC ± 25%, 1.41 A, max. 17 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
Material Metal
Dimension Ø127.3 mm × 96.3 mm (Ø5.01" × 3.79")
Package Dimension 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
Approx. 0.61 kg (1.35 lb.)
With Package Weight Approx. 0.805 kg (1.76 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Flashing Light White/Red-Blue, configurable

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
