AcuSeek NEW HOT
add compare icon

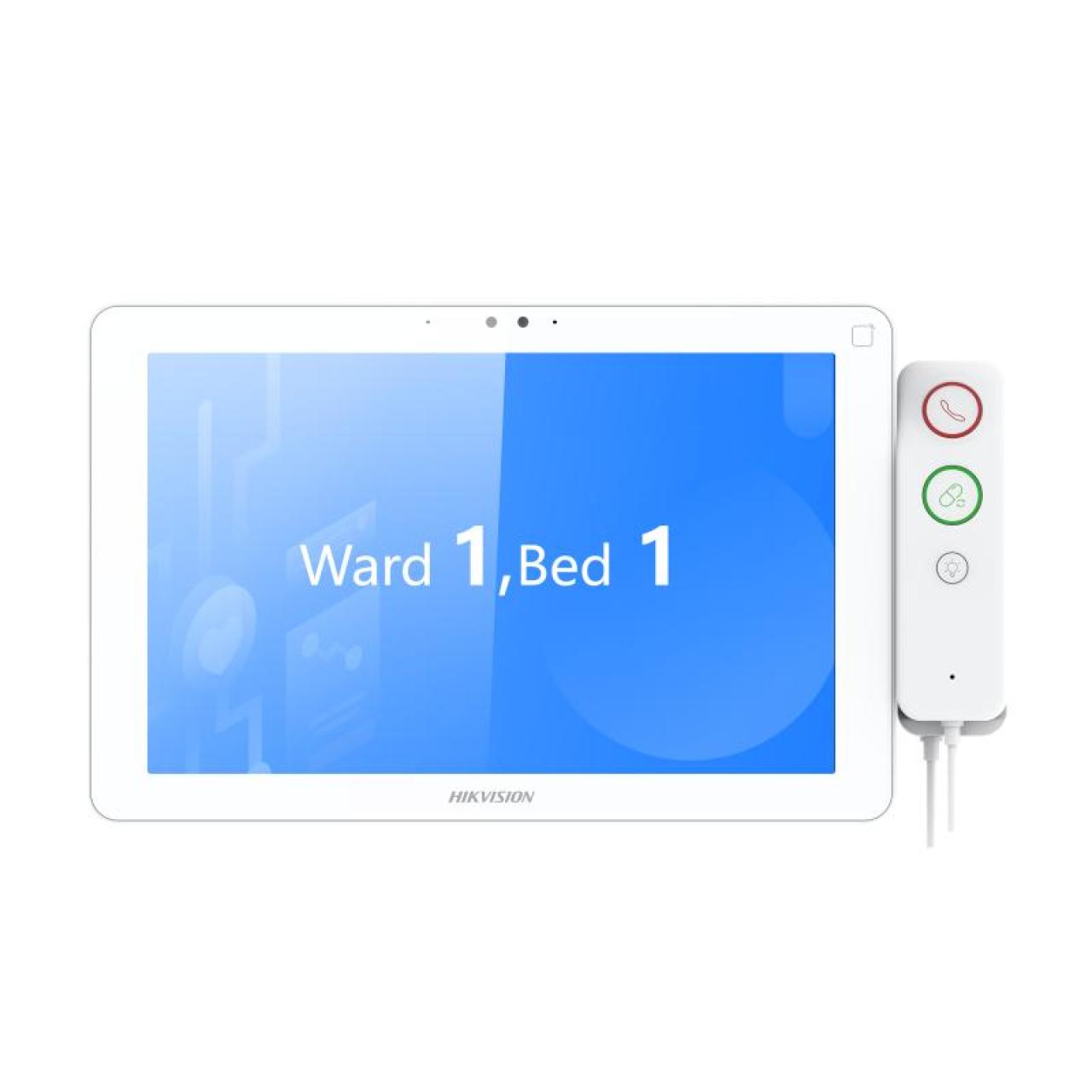

10.1-inch Screen Android Bedside Terminal

  • 10.1-inch bedside screen. Support two way intercom with central station by screen and handset
  • Support medical arm installation for bedside use
  • Support functions of patients and health care information display, and video&audio play.
  • Support setting call volume, local network parameter configuration
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KHB9533X-WHS
View more View Less
DS-KHB9533X-WHS
Data Sheet

Specification

  • System parameters
  • Operation systemAndroid 10.0
  • ROM4 GB
  • RAM2 GB
  • Display parameters
  • Screen size10.1-inch
  • Operation methodCapacitive touch screen
  • TypeColorful IPS
  • Resolution1280 × 800
  • Audio parameters
  • Audio inputBuilt-in omnidirectional microphone, external speaker
  • Audio compression standardG.711U
  • Audio outputBuilt-in SPK
  • Audio compression bitrate64 Kps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Network parameters
  • Network protocolTCP/IP, SIP, RTSP
  • Wi-FiSupport
  • Wireless network868MHz
  • Device interfaces
  • Alarm input4
  • Network interface1*RJ45
  • RS-4851
  • TF cardSupport TF card, up to 128 G
  • General
  • InstallationArm mounting
  • Working temperature-10℃～50℃
  • Working humidity10% to 90% (no-condensing)
  • Dimension (W × H × D)256mm x 165mm
  • Application environmentIndoor
  • Power Supply Output12 VDC, standard PoE (LAN1)
  • Power consumption≤ 8 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System parameters
Operation system
Android 10.0
ROM
4 GB
RAM
2 GB
Display parameters
Screen size
10.1-inch
Operation method
Capacitive touch screen
Type
Colorful IPS
Resolution
1280 × 800
Audio parameters
Audio input
Built-in omnidirectional microphone, external speaker
Audio compression standard
G.711U
Audio output
Built-in SPK
Audio compression bitrate
64 Kps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Network parameters
Network protocol
TCP/IP, SIP, RTSP
Wi-Fi
Support
Wireless network
868MHz
Device interfaces
Alarm input
4
Network interface
1*RJ45
RS-485
1
TF card
Support TF card, up to 128 G
General
Installation
Arm mounting
Working temperature
-10℃～50℃
Working humidity
10% to 90% (no-condensing)
Dimension (W × H × D)
256mm x 165mm
Application environment
Indoor
Power Supply Output
12 VDC, standard PoE (LAN1)
Power consumption
≤ 8 W
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System parameters
  • System parameters
  • System parameters
  • System parameters
Display parameters
  • Display parameters
  • Display parameters
  • Display parameters
  • Display parameters
Audio parameters
  • Audio parameters
  • Audio parameters
  • Audio parameters
  • Audio parameters
  • Audio parameters
  • Audio parameters
Network parameters
  • Network parameters
  • Network parameters
  • Network parameters
Device interfaces
  • Device interfaces
  • Device interfaces
  • Device interfaces
  • Device interfaces
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V3.1.6_251027
Firmware_V3.1.9_260109
Firmware_V3.1.9_260109
Firmware_V3.1.9_260109
Applied to:
DS-KHB9533X-WHS
