AcuSeek NEW HOT
add compare icon

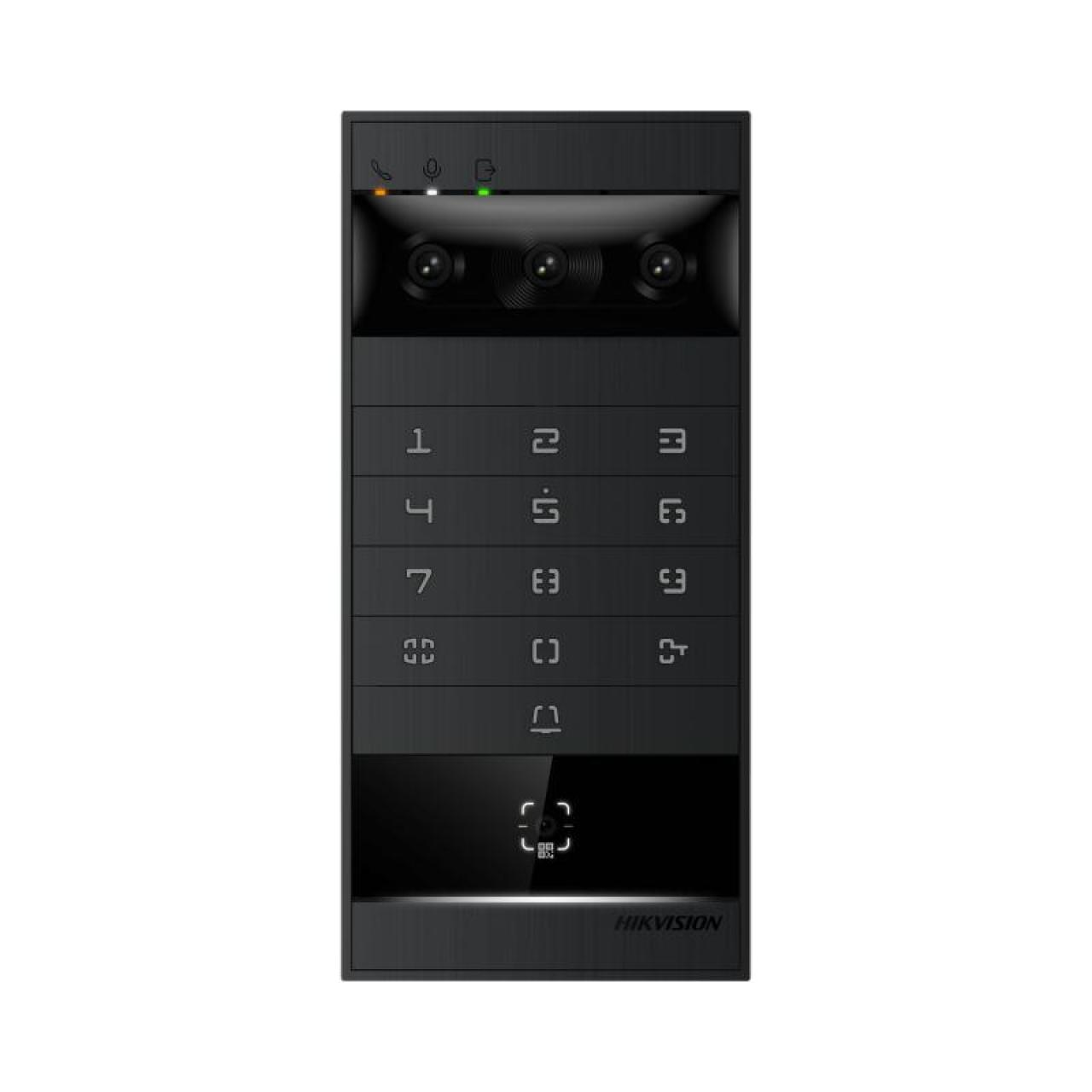

Metal Villa Door Station

  • Clear & wide vision: 4 MP + 2MP + 2MP, 180° FOV, AI-ISP
  • Loud & clear audio: Max to 4 mic / dual speakers, AI noise reduction
  • AI-powered security: AI video detection, Abnormal sound detection
  • Flexible access solutions: Face / Card / Bluetooth / PIN code / QR code / App
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KV8114T-KWQE1
View more View Less
DS-KV8114T-KWQE1
Data Sheet

Specification

  • System parameters
  • Operation systemLinux
  • ROM4 GB
  • RAM1 GB
  • ProcessorEmbedded high performance processor
  • Video parameters
  • Lens3
  • ResolutionMain stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
  • FOVCenter Lens: Horizontal: 180°; Vertical: 105° Side Lenses: Horizontal: 75°; Vertical: 150°
  • Wide dynamic range (WDR)Support 120 dB
  • Supplement lightIR light, up to 3 m
  • Video compression standardH.264; H.265; MJPEG
  • Audio parameters
  • Audio input4 built-in omnidirectional microphones
  • Audio compression standardG.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
  • Audio output2 built-in loudspeakers
  • Audio compression bitrate8~64 Kps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Audio Performance50cm, 85dB
  • Audio Sample Rate8kHz, 16kHz
  • Capacity
  • User capacity10000
  • Face capacity10000
  • Card capacity50000
  • Sub door station capacity16
  • Network parameters
  • Network protocolTCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, IPv4, IPv6, UDP, WebSocket, WebSockets，ONVIF, SIP v2 (RFC3261)
  • Wi-Fi2.4G
  • BluetoothSupported, BLE 5.2
  • 3G/4G/
  • Wi-Fi ProtocolIEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax
  • Wi-Fi TypeWiFi 6
  • Authentication
  • Authentication modeFace, Card, QR code, Bluetooth, Hik-Connect, Indoor station, Mobile APP, PIN Code
  • Card typeM1 Card, Desfire
  • Card reading frequency13.56 MHz
  • Face recognition distance0.3 to 1.5 m
  • Card reading distance3 cm
  • Application
  • Mobile APPHik-Connect
  • Motion DetectionSupport
  • PlaybackSupport
  • Call ElevatorSupport
  • Smart Features1. Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound, Gunshot Recommended Detection Distance: ＜ 3 m 2. Portrait Centered 3. Perimeter Detection: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection Recommended Detection Distance: ＜ 10 m Supports Person and Vehicle Target Detection 4. Fall Down Detection Recommended Detection Distance: ＜ 5 m 5. Target Microphone Pickup Range: Forward 60° Sector Area Recommended Detection Distance: 0.5 m ~ 1 m 6. Smart Noise Reduction Supports Common Steady-State and Non-Steady-State Street Noises Noise Reduction Level: > 15 dB
  • Device interfaces
  • Alarm input4, (include Exit button and Door contact input)
  • Network interface1 RJ-45, 10/100 Mbps self-adaptive
  • TAMPER1
  • Exit button2
  • RS-4851
  • USB/
  • Wiegand/
  • TF cardSupport TF card, up to 128 G
  • Alarm output/
  • Lock control2 relay, Max. 30 VDC 1A
  • Door contact input2
  • Supported TF FormatFAT32;exFAT
  • General
  • Application environmentOutdoor
  • Button13 physical button(s)
  • InstallationSurface mounting & Flush mounting
  • Without package: 550 g (1.21 lb),With package: 831g (1.83 lb)
  • Indicator3
  • Protective levelIP66, IK08 (excluding the lens area and card reading area)
  • Storage temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
  • Working humidity10% to 90% (no-condensing)
  • Battery/
  • Dimension (W × H × D)202.6 mm × 95.6 mm × 34.1 mm (7.98" × 3.76" × 1.34")
  • Power consumptionWith Lock: < 14 W Without Lock: < 20 W
  • Power supply12 VDC, 2 A,IEEE 802.3 at, standard PoE
  • MaterialRear Shell Material: Plastic Front Shell: Aluminum Alloy & Plastic Frame: Aluminum Alloy Viewing Window Panel Material: Plastic
  • Power Supply OutputMax. 12 VDC, 500mA
  • LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
  • Ambient lightingSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System parameters
Operation system
Linux
ROM
4 GB
RAM
1 GB
Processor
Embedded high performance processor
Video parameters
Lens
3
Resolution
Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
FOV
Center Lens: Horizontal: 180°; Vertical: 105° Side Lenses: Horizontal: 75°; Vertical: 150°
Wide dynamic range (WDR)
Support 120 dB
Supplement light
IR light, up to 3 m
Video compression standard
H.264; H.265; MJPEG
Audio parameters
Audio input
4 built-in omnidirectional microphones
Audio compression standard
G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
Audio output
2 built-in loudspeakers
Audio compression bitrate
8~64 Kps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Audio Performance
50cm, 85dB
Audio Sample Rate
8kHz, 16kHz
Capacity
User capacity
10000
Face capacity
10000
Card capacity
50000
Sub door station capacity
16
Network parameters
Network protocol
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, IPv4, IPv6, UDP, WebSocket, WebSockets，ONVIF, SIP v2 (RFC3261)
Wi-Fi
2.4G
Bluetooth
Supported, BLE 5.2
3G/4G
/
Wi-Fi Protocol
IEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax
Wi-Fi Type
WiFi 6
Authentication
Authentication mode
Face, Card, QR code, Bluetooth, Hik-Connect, Indoor station, Mobile APP, PIN Code
Card type
M1 Card, Desfire
Card reading frequency
13.56 MHz
Face recognition distance
0.3 to 1.5 m
Card reading distance
3 cm
Application
Mobile APP
Hik-Connect
Motion Detection
Support
Playback
Support
Call Elevator
Support
Smart Features
1. Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound, Gunshot Recommended Detection Distance: ＜ 3 m 2. Portrait Centered 3. Perimeter Detection: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection Recommended Detection Distance: ＜ 10 m Supports Person and Vehicle Target Detection 4. Fall Down Detection Recommended Detection Distance: ＜ 5 m 5. Target Microphone Pickup Range: Forward 60° Sector Area Recommended Detection Distance: 0.5 m ~ 1 m 6. Smart Noise Reduction Supports Common Steady-State and Non-Steady-State Street Noises Noise Reduction Level: > 15 dB
Device interfaces
Alarm input
4, (include Exit button and Door contact input)
Network interface
1 RJ-45, 10/100 Mbps self-adaptive
TAMPER
1
Exit button
2
RS-485
1
USB
/
Wiegand
/
TF card
Support TF card, up to 128 G
Alarm output
/
Lock control
2 relay, Max. 30 VDC 1A
Door contact input
2
Supported TF Format
FAT32;exFAT
General
Application environment
Outdoor
Button
13 physical button(s)
Installation
Surface mounting & Flush mounting
Without package: 550 g (1.21 lb),With package: 831g (1.83 lb)
Indicator
3
Protective level
IP66, IK08 (excluding the lens area and card reading area)
Storage temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working temperature
-40 °C to 60 °C (-40 °F to 140 °F)
Working humidity
10% to 90% (no-condensing)
Battery
/
Dimension (W × H × D)
202.6 mm × 95.6 mm × 34.1 mm (7.98" × 3.76" × 1.34")
Power consumption
With Lock: < 14 W Without Lock: < 20 W
Power supply
12 VDC, 2 A,IEEE 802.3 at, standard PoE
Material
Rear Shell Material: Plastic Front Shell: Aluminum Alloy & Plastic Frame: Aluminum Alloy Viewing Window Panel Material: Plastic
Power Supply Output
Max. 12 VDC, 500mA
Language
English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
Ambient lighting
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
